![Spray wash Automatic Parts Washer](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/Asset-6.png)
Automatic Parts Washer Machine
The most efficient Automatic Parts Washer Machine in the market
Only uses Hot Water + Detergent
Auto Pump out of waste
Auto Water Level Top
Gear Driven Turntable
60% Better Cleaning Efficiency than other brands
Heavy Duty, Aussie Made
The most efficient automatic parts washer in the market
The refined design of Apollo’s aqueous automatic parts washer machine makes them one of the most efficient automatic parts washer machines in the market in terms of performance and whole of life costs. The major benefits of automatic parts washer – Apollo Engineering include:
- Certified fully compliant with AS4024 – Safety of Machinery to maximize operator safety
- Gear drive turntable for controlled rotation speed
- Automatic water level control and element protection
- 7-day time clock for pre-programmed operation of the heater elements
- Adjustable cycle timer
- Automatic pump-out of spent cleaning solution for ease of servicing
- Options available such as filtration, oil skimming, metallic particle separation, and more
Automatic Parts washer - Apollo Engineering Cleaning Efficiency
models specs
- SW800
- SW1100
- SW1400
- SW1409
- SW1612
- SW2023
- SW3216
Specification | Details |
---|---|

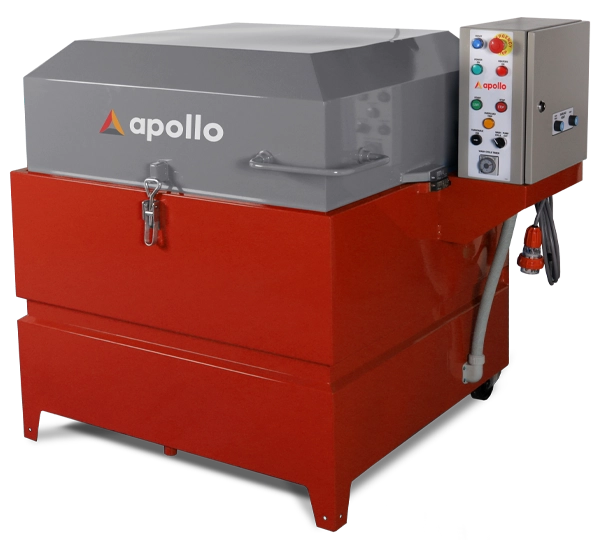

Basket Diameter | 810mm |
Job Weight (Maximum) | 250kg |
Job Height (Maximum) | 470mm |
Water Capacity | 120 Litres |
Pump | 2.2Kw Westate |
Power Outlet Required | 20 AMP, 415V 3 Phase |
Heaters | 3 x 2.4Kw |
![SW800_resized](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/SW800_resized-1.png)
Specification | Details |
---|---|

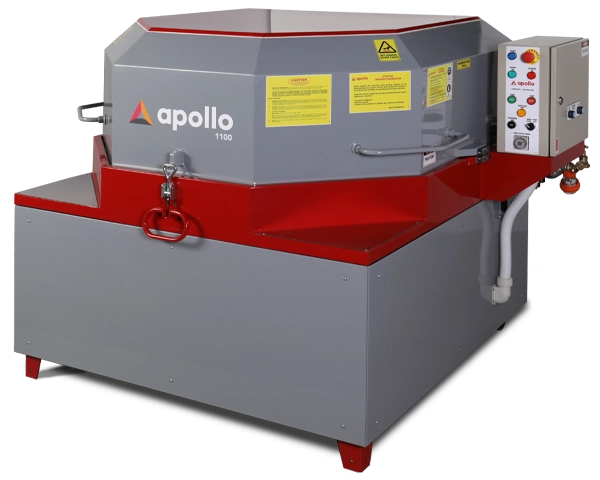

Basket Diameter | 1100mm |
Job Weight (Maximum) | 750kg |
Job Height (Maximum) | 630mm |
Water Capacity | 250 Litres |
Pump | 4Kw |
Power Outlet Required | 20A 3 Phase |
Heaters | 3 x 2.4Kw |
![SW1100_resized](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/SW1100_resized_correct.png)
Specification | Details |
---|---|

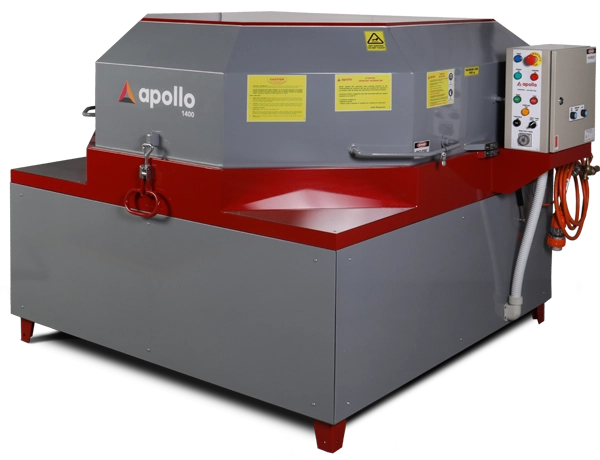

Basket Diameter | 1400mm |
Job Weight (Maximum) | 1000kg |
Job Height (Maximum) | 660mm, optional 760mm |
Water Capacity | 330 Litres |
Pump | 5.5Kw |
Power Outlet Required | 32A 3 Phase |
Heaters | 3 x 3.6Kw |
![SW1400](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/SW1400_resized.png)
Specification | Details |
---|---|

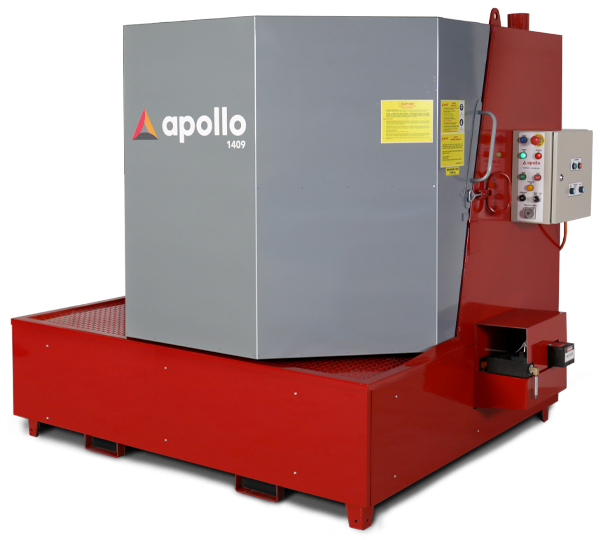

Basket Diameter | 1400mm |
Job Weight (Maximum) | 2000kg |
Job Height (Maximum) | 975mm |
Water Capacity | 360 Litres |
Pump | 5.5Kw |
Power Outlet Required | 32A 3 Phase |
Heaters | 3 x 3.6Kw |
![SW1409 Door Closed_resized](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/SW1409-Door-Closed_resized.png)
Specification | Details |
---|---|

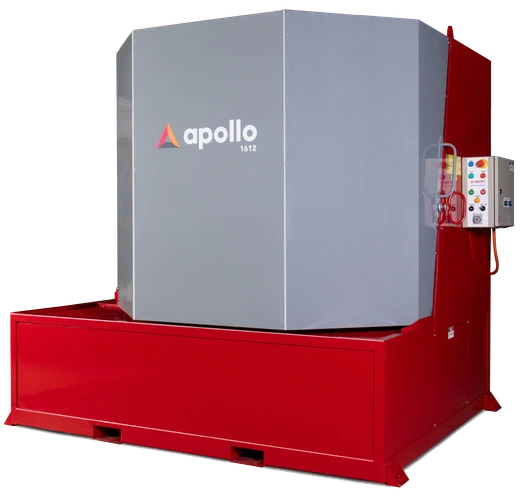

Basket Diameter | 1600mm |
Job Weight (Maximum) | 2000kg |
Job Height (Maximum) | 1200mm |
Water Capacity | 450 Litres |
Pump | 5.5Kw |
Power Outlet Required | 32A 3 Phase |
Heaters | 3 x 3.6Kw |
![SW1612](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/SW1612.png)
Specification | Details |
---|---|

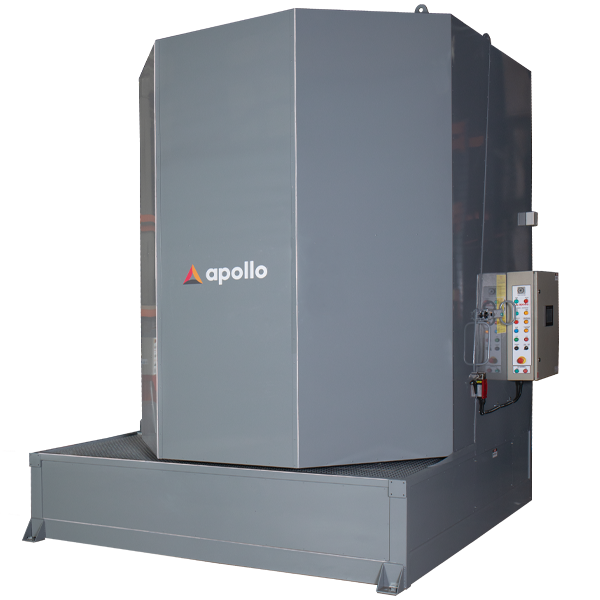

Basket Diameter | 2000mm |
Job Weight (Maximum) | 4000kg |
Job Height (Maximum) | 1350mm or 2300mm |
Water Capacity | 800 Litres |
Pump | 2 x 5.5Kw |
Power Outlet Required | 62 amp |
Heaters | 2 x 14.4Kw |
![SW2023](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/SW2023_resized.png)
Specification | Details |
---|---|

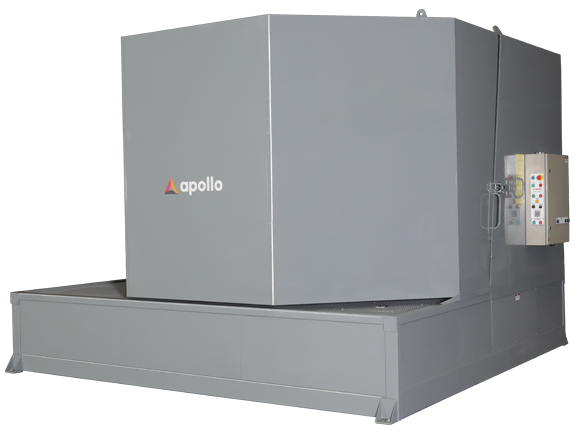

Basket Diameter | 3200mm |
Job Weight (Maximum) | 4000kg |
Job Height (Maximum) | 1600mm |
Water Capacity | 1000 Litres |
Pump | 2 x 5.5Kw |
Power Outlet Required | 62 amp |
Heaters | 2 x 14.4Kw |
![0G9A5451](https://www.apolloengineering.com.au/wp-content/uploads/2023/07/0G9A5451_resized.png)
